Product Details:
|
| Tool Model: | N264V | Mandrel Sucking: | Yes |
|---|---|---|---|
| Air Supply: | 5 Bar - 7 Bar | Traction Power: | 14,600N-20,440N |
| Stroke: | 18mm | Capacity: | 4.0-6.4mm Blind Rivets All Materials |
| Net Weight: | 1.79kgs | ||
| High Light: | N264V 6.4mm Air Riveting Tools,6.4mm Air Riveting Tools N264V,Air Riveting Tools N264V 6.4mm |
||

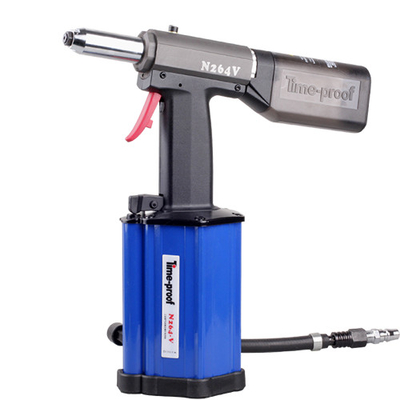

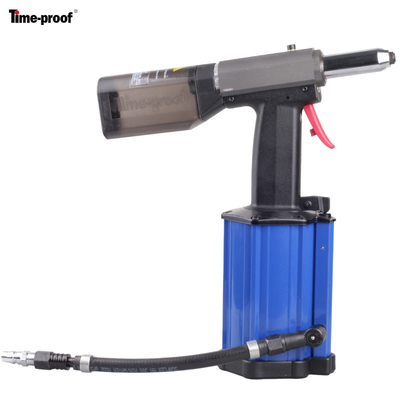

Air Riveting Tool Riveter Pneumatic For Blind Rivets 4.0-6.4mm With Vacuum Suction CE N264V
PRODUCT DESCIPTION
Main Features:
Specifications:
|
N264V Air Riveting Tool |
|||
|---|---|---|---|
| Main performance parameters | Air supply: | 0.5Mpa-0.7Mpa | 5bar-7bar |
| Traction power: | 14,600N-20,440N | ||
| Stroke: | 18mm | With Vacuum Suction | |
| Capacity | Blind rivets | Aluminum | 4.0-6.4mm |
| Blind rivets | Steel | 4.0-6.4mm | |
| Blind rivets | Stainless steel | 4.0-6.4mm | |
| Size | Lenght: | 289mm | |
| Height: | 320mm | ||
| Width: | 110mm | ||
| Net Weight | 1.79kgs | ||
Innovation:
The most remarkable features of the tools are the unique design of the tool bodies - air cylinders.
With vertical hexigon-shaped air cylinder design, it changes the triditional way of production. The air cyliners are closed, from top and bottom, by six screws instead of triditionally tapping the thread around the cylinder body which requires considerable material thickness. With the unique cylinder closing methord, it makes the tools are comparatively lighter.
INDUSTRIAL SERIES
ndustrial series riveting tools consists of models, with prefix -N for rivets setting tools and prefix -M for rivet nuts setting tools:
N240, N240V for setting blind rivets up to 4,0mm.
N250, N250V for setting blind riveets up to 4,8/5,0mm.
The model codes with suffix -V indicates the tool with vacuum sucking system to hold the blind rivets in the tool nosepiece and automatic blow out the rest mandrel after setting.
BENEFITS
Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;
FACTORY
Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.
