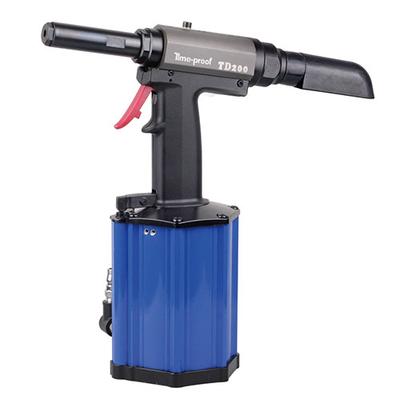

5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets

Certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
I'm Online Chat Now

5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets

5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets
5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets

Large Image :  5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets

Product Details:
Place of Origin: China
Brand Name: Time-proof
Certification: CE
Model Number: TD200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rigid Plastic Box
Delivery Time: 5-35 work days
Payment Terms: T/T, L/C
Supply Ability: 1500pcs per month

5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets

Description
Tool Model: TD200 Air Supply: 5bar - 7bar
Traction Power: 17,000N - 24,360N Stroke: 19mm
Capacity: Automobile Engine Rivets Net Weight: 1.82kgs
Highlight:

7bar Automotive Rivet Tool

,

19mm Stroke Air Hydraulic Rivet Gun

,

5bar Automotive Rivet Tool



Automotive Rivet Tool Air Hydraulic Rivet Gun For Automobile Engine Rivets TD200



PRODUCT DESCIPTION


Main Features:

  • For Automobile Engine Rivets
  • Anti-vibration
  • Stable and reliable

Specifications:



TD200 Automotive Riveting Tool



Main performance parameters Air supply: 0.5Mpa-0.7Mpa 5bar-7bar
Traction power: 17,000N - 24,360N
Stroke: 19mm
Capacity



Automobile Engine Rivets

5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets 0

Size & Weight   Net Weight 1.82kgs
Height: 330mm
Width: 317mm





5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets 1



Modular Design


It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.



BENEFITS


Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;



FACTORY


Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.



5bar - 7bar Air Hydraulic Rivet Gun Automotive Rivet Tool For Automobile Engine Rivets 2
