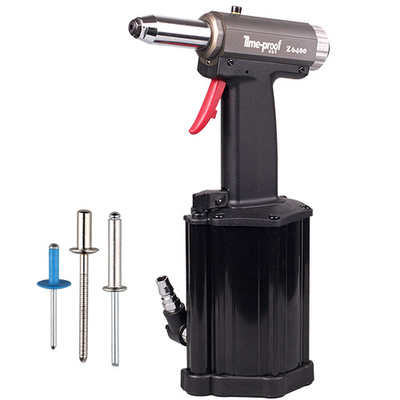

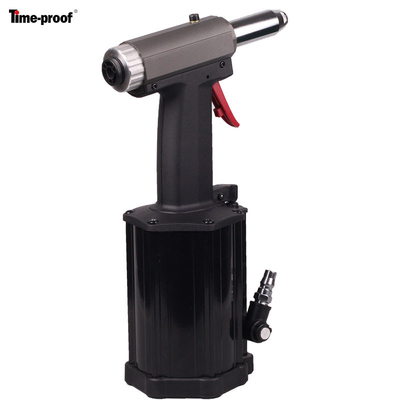

Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE

Certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
I'm Online Chat Now

Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE

Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE
Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE

Large Image :  Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE

Product Details:
Place of Origin: China
Brand Name: Time-proof
Certification: CE
Model Number: Z6400
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rigid Carton
Delivery Time: 5-20 work days
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month

Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE

Description
Compressed Air: 0.5Mpa-0.7Mpa Pulling Power: 12,300 N - 17,220 N
Capacity: Blind Rivets 4.0--6.4mm Stroke: 20mm
Net Weight: 1.70kgs
High Light:

6.4mm Commercial Air Riveter

,

blind rivet gun 4.0mm

,

Commercial Air Riveter CE



Up to 6.4mm Commercial Air Riveter Stable Rivet Gun For 4.0-6.4mm Blind Rivets CE Z6400

PRODUCT DESCIPTION


 Main Features:

  • good quality alloy 3-jaw set.
  • powerful.
  • dynamic parts with hardened mirror finishing.
  • anti-vibrations.
  • high-Mg alloy hexigon body design light and strong.


Innovation:
The most remarkable features of the tools are the unique design of the tool bodies - air cylinders.
With vertical hexigon-shaped air cylinder design, it changes the triditional way of production. The air cyliners are closed, from top and bottom, by six screws instead of triditionally tapping the thread around the cylinder body which requires considerable material thickness. With the unique cylinder closing methord, it makes the tools are comparatively lighter.

Specifications:


Z6400 Commercial Air Riveting Gun


Main performance parameters Air supply: 0.5Mpa-0.7Mpa 5bar-7bar
Traction power: 12,300 N - 17,220 N
Stroke: 20mm MODULAR DESIGN
Capacity Blind rivets Aluminum 4.0mm-6.4mm
Blind rivets Steel 4.0mm-6.4mm
Blind rivets Stainless steel 4.0mm-6.4mm



Packaging:

Packaging Details
Boxes: white neutral box small.
Box Dimensions /mm: 215 x 111 x 325.
Tool / Carton: 7
Carton Dimensions /mm: 775 x 345 x 235
Cartons / Pallet: 10
Tools / Pallet: 70



Port
Shanghai



Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE 0

COMMERCIAL SERIES


Commercial series riveting tools consists of models, with prefix -Z: Z5000 , Z5000V , Z5000A , Z5000AV for setting blind rivets up to 4,8/5,0mm Z6400 , Z6400V for setting blind rivets up to 6,4mm.

BENEFITS


Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;

FACTORY


Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.

Up to 6.4mm Commercial Air Riveter For 4.0mm - 6.4mm Blind Rivets CE 1
