Hexagon Punching Rivnut Installation Tool 12mm Stroke Pneumatic Nutsert Tool

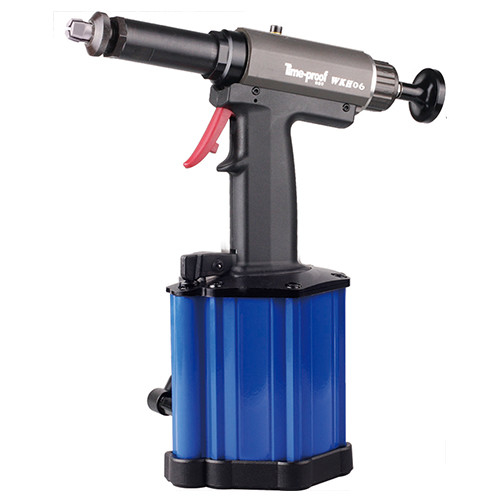

Large Image : Hexagon Punching Rivnut Installation Tool 12mm Stroke Pneumatic Nutsert Tool

Product Details:

Place of Origin:	China
Brand Name:	Time-proof
Certification:	CE
Model Number:	WKH06

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	aluminium box
Delivery Time:	5-35 work days
Payment Terms:	T/T, L/C
Supply Ability:	2000pcs per month

Contact Now

Hexagon Punching Rivnut Installation Tool 12mm Stroke Pneumatic Nutsert Tool

Description

Air Supply Pressure:	0,5Mpa ~ 0,7Mpa	Output Traction Power:	17,400 N ~ 24,360 N
Stroke:	12mm	Net Weight:	2,0 Kgs
Cycle:	2.5s	Noise:	<80dB
Capacity:	See The Tool Capacity Table
High Light:	12mm Strokes Hexagon Punching Rivnut , Hexagon Punching Rivnut Tools 12mm Stroke , Hexagon Punching Rivnut 12mm Strokes

Pneumatic Hexagon Punching Tool Rivet Nut Tool WKH06

Pneumatic Hexagon Punching Tool is an advanced tool for machining hexagonal hole. It adopts pneumatic hydraulic power to change the round hole into hexagonal one, making it more efficient and easier to open the hexagonal hole.

TOOL CAPACITY

a) To set M3, M4 hexagon hole on Aluminum sheet with thickness not more than 2.5mm;

M5, M6 hexagon hole, not more than 6mm.

b) To set M3, M4 hexagon hole on Steel metal sheet with thickness not more than 1.5mm. M5, M6 hexagon hole, not more than 3mm.

c) To set M3, M4 hexagon hole on Stainless Steel sheet with thickness not more than 1.5mm; for M5, M6, not more than 2mm

nose assembly	workpiece thickness (mm)
	aluminium	steel	stainless steel
M3	≤2.5	≤1.5	≤1.5

M4	≤2.5	≤1.5	≤1.5

M5	≤5	≤3	≤2

M6	≤5	≤3	≤2

Hexagon Punching Rivnut Installation Tool 12mm Stroke Pneumatic Nutsert Tool 0

TOOL SPECIFICATIONS

air supply pressure: 0,5Mpa ~ 0,7Mpa
output traction power: 17,400 N ~ 24,360 N
stroke: 12 mm
net weight: 2,0 kgs
cycle: 2.5s
noise: <80dB

Hexagon Punching Rivnut Installation Tool 12mm Stroke Pneumatic Nutsert Tool 1
