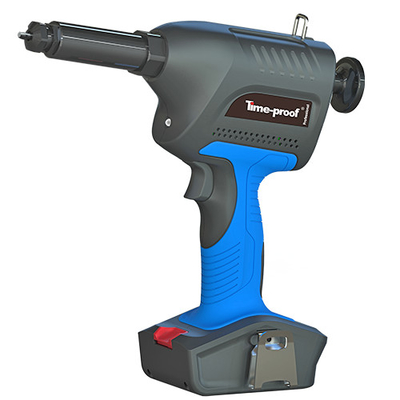

Hexagon Punching Cordless Battery Rivet Gun Rivet Nut Setting Tool 19mm Stroke

Hexagon Punching Cordless Battery Rivet Gun Rivet Nut Setting Tool 19mm Stroke
Hexagon Punching Cordless Battery Rivet Gun Rivet Nut Setting Tool 19mm Stroke

Large Image :  Hexagon Punching Cordless Battery Rivet Gun Rivet Nut Setting Tool 19mm Stroke

Product Details:
Place of Origin: China
Brand Name: Time-proof
Certification: CE
Model Number: TDC-HX1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rigid Plastic Box
Delivery Time: 5-35 work day
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month

Hexagon Punching Cordless Battery Rivet Gun Rivet Nut Setting Tool 19mm Stroke

Description
Tool Model: TDC-HX1 Traction Power: 20,000N Max
Stroke: 19mm Cycle Time: 2 Sec.
Noise Level: <80dB Battery: 18V 2.0Ah 5cells Li-ion
Charge Time: 60min. Weight: 2.39kg
Charger: 100V-240V AC/50-60Hz Capacity: See The Tool Capacity Table
High Light:

19mm Stroke Hexagon Rivet Guns

,

Hexagon Rivet Guns Nut 19mm Stroke

,

19mm Stroke Hexagon Rivet Guns Nut


Battery Hexagon Punching Tool Rivet Nut Setting Tool Cordless Tool TDC-HX1

PRODUCT DESCIPTION




TDC-HX1 tool transforms a pre-drilled round hole to an hex hole, to set hex or semi hex blind nuts.



TOOL CAPACITY



a) To set M5, M6, M8 hexagon hole on Aluminum sheet with thickness not more than 5mm; for M4, not more than 2.5mm; M10 hexagon hole, not more than 3mm.



b) To set M5, M6, M8, M10 hexagon hole on Steel metal sheet with thickness not more than 3mm; for M4, not more than 1.5mm;



c) To set M5, M6, M8 hexagon hole on Stainless Steel sheet with thickness not more than 2mm; for M4, M10, not more than 1.5mm



cutter sets workpiece thickness (mm)
aluminium steel stainless steel
M4 ≤2.5 ≤1.5 ≤1.5
M5 ≤5 ≤3 ≤2
M6 ≤5 ≤3 ≤2
M8 ≤5 ≤3 ≤2
M10 ≤3 ≤3 ≤1.5


Hexagon Punching Cordless Battery Rivet Gun Rivet Nut Setting Tool 19mm Stroke 0



Specifications:


TDC-HX1 Cordless Cutting Hexagon Hole Tool


Main performance parameters Traction Power 20000N max
Stroke 19mm
Cycle Time 2 sec.
Battery & Charger Battery 18V 2.0Ah 5cells Li-ion
Charger 100V-240V AC/50-60Hz
Charging Time 60min.


Main Features:

  • LED light. Lighting & Fault Indication

  • owerful Li-ion battery..

  • Quick release battery.

  • Double side installable belt clip

  • Advanced electrical circuit.

Hexagon Punching Cordless Battery Rivet Gun Rivet Nut Setting Tool 19mm Stroke 1



BATTERY FEATURES



  • The battery has a protective circuit.

  • The effective capacity of the battery is still not less than 70% of the original capacity after 500 charging and discharging.

  • The battery can display the accurate electric level without be attached to the tool.



BENEFITS


Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;


FACTORY


Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.
