Product Details:
|
| Tool Model: | TC64V | Air Supply: | 5bar-7bar |
|---|---|---|---|
| Vacuum Suction: | Yes | Traction Power: | 1,7000N-2,4000N |
| Stroke: | 27mm | Capacity: | 4.0mm-6.4mm Blind Rivets |
| Net Weight: | 2.27kgs | Nose Level: | <75dB |
| High Light: | Vacuum Suction Hydraulic Rivets Blind 4.0mm,Vacuum Blind Suction Hydraulic Rivets 4.0mm,Vacuum Blind Suction Hydraulic Rivet tools 4.0mm |
||
Air Riveting Tool Rivet Gun Air Riveter With Vacuum Sucking For Blind Rivets 3.2-5.0mm TC50V
PRODUCT DESCIPTION
Modular Design:
It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.
Main Features:
Specifications:
|

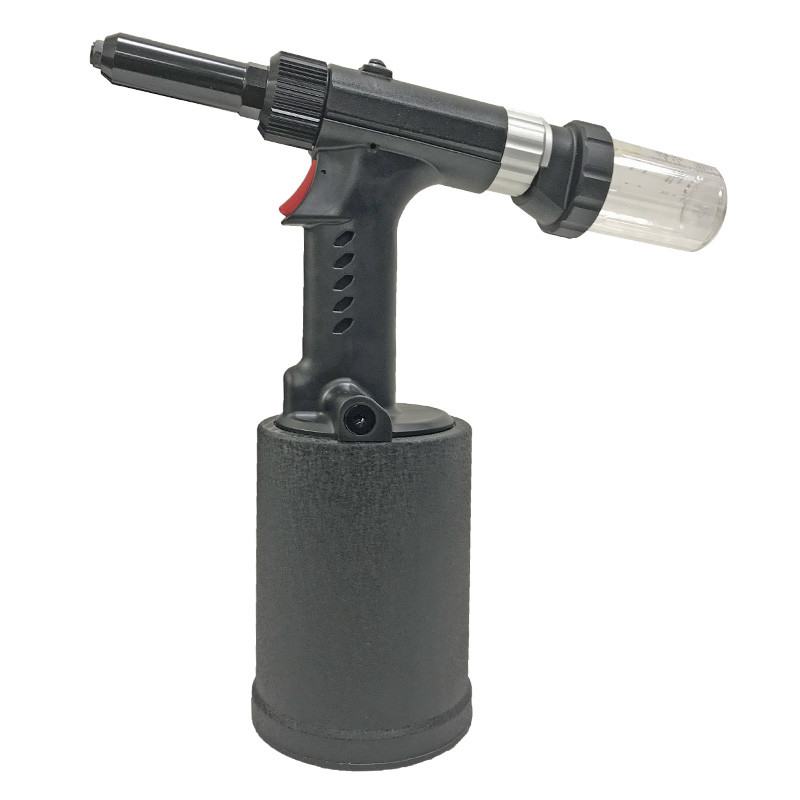

TC64V Air Rivet Tool
|
|||
|---|---|---|---|
| Main performance parameters | Air supply: | 0.5Mpa-0.7Mpa | 5bar-7bar |
| Traction power: | 1,7000N-2,4000N | ||
| Stroke: | 27mm | with vacuum suction | |
| Capacity | split rivet | Aluminum | 4.0mm-6.4mm |
| split rivet | Steel & Stainless Steel | 4.0mm-6.4mm | |
| Net Weight | 2.27kgs | ||
COMMERCIAL SERIES
Commercial series riveting tools consists of models, with prefix -Z: Z5000 , Z5000V , Z5000A , Z5000AV for setting blind rivets up to 4,8/5,0mm Z6400 , Z6400V for setting blind rivets up to 6,4mm.
The model codes with suffix -V indicates the tool with vacuum sucking system to hold the blind rivets in the tool nosepiece and automatic blow out the rest mandrel after setting.
Model codes with suffix -A indicates the tools are customized with traction power enhanced at sacrificing stroke, pairing Z5000 and Z5000A, Z5000V and Z5000AV.
BENEFITS
Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;
FACTORY
Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.
