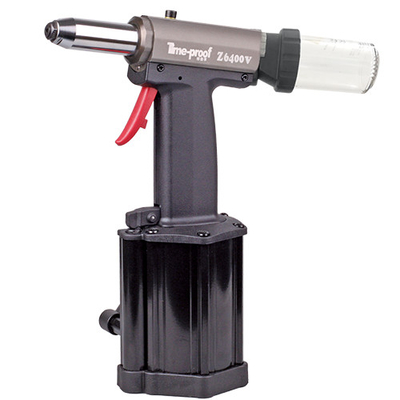

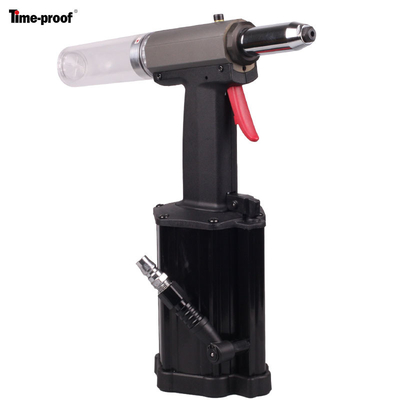

Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE

Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE
Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE

Large Image :  Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE

Product Details:
Place of Origin: China
Brand Name: Time-proof
Certification: CE
Model Number: Z6400V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: paper carton
Delivery Time: 5-35 work days
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month

Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE

Description
Tool Model: Z6400V (with Vacuum Suction) Air Supply: 5 Bar - 7 Bar
Capacity: Blind Rivets 4.0-6.4mm Traction Power: 12,300N - 17,220N
Stroke: 20mm Net Weight: 1.71 Kgs
High Light:

6.4mm Air Riveting Tools gun Vacuum CE

,

6.4mm Air Riveting Tools gun Suction CE

,

CE 6.4mm Air Riveting Tool guns Suction


Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE Z6400V

PRODUCT DESCIPTION


 Main Features:

  • with vaccum suction

  • good quality alloy 3-jaw set.

  • powerful.

  • dynamic parts with hardened mirror finishing.

  • igh-Mg alloy hexigon body design light and strong.


Innovation:
The most remarkable features of the tools are the unique design of the tool bodies - air cylinders.
With vertical hexigon-shaped air cylinder design, it changes the triditional way of production. The air cyliners are closed, from top and bottom, by six screws instead of triditionally tapping the thread around the cylinder body which requires considerable material thickness. With the unique cylinder closing methord, it makes the tools are comparatively lighter.

Specifications:


Z6400V Air Riveting Gun Mandrel Sucking


Main performance parametersAir supply:0.5Mpa-0.7Mpa5bar-7bar
Traction power:12,300 N - 17,220 N
Stroke:20 mmwith vacuum suction
CapacityBlind rivetsAluminum4.0-6.4mm
Blind rivetsCarbon Steel4.0-6.4mm
Blind rivetsStainless steel

4.0-6.4mm


Packaging:

Packaging Details
Tool: x1
Nosepieces: x3
4.0mm, 4.8mm, 6.4mm(already installed on the tool)
Wrench: x1
3-Jaw Set: x1
Oil Syringe: x1
Hook: x1
Pin Tube: x1
Manual: x1
Port
Shanghai


Up To 6.4mm Air Riveting Tool Rivet gun With Vacuum Suction CE 0

COMMERCIAL SERIES


Commercial series riveting tools consists of models, with prefix -Z: Z5000 , Z5000V , Z5000A , Z5000AV for setting blind rivets up to 4,8/5,0mm Z6400 , Z6400V for setting blind rivets up to 6,4mm.

BENEFITS


Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;

FACTORY


Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.
