Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool

Certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
I'm Online Chat Now

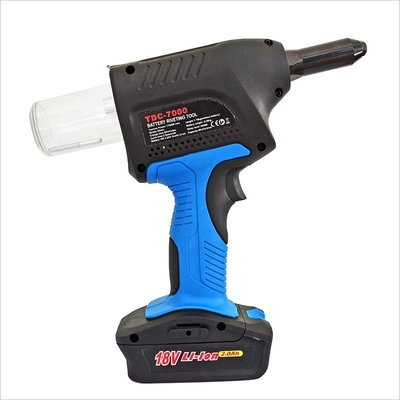

Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool

Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool
Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool

Large Image :  Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool

Product Details:
Place of Origin: China
Brand Name: Time-proof
Certification: CE
Model Number: TDC7000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rigid Plastic Box
Delivery Time: 5-35 work day
Payment Terms: T/T, L/C
Supply Ability: 5000pcs per month

Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool

Description
Tool Model: TDC7000 Traction Power: 17,000N Max
Stroke: 25mm Capacity: 4.0mm-6.4mm Blind Rivets
Cycle Time: 2 Sec. Noise Level: <80dB
Battery: 18V 2.0Ah 5cells Li-ion Charge Time: 60min.
Weight: 1.79kg (without Battery) Battery Weight: 0.36kg
Charger: 100V-240V AC/50-60Hz
High Light:

Brushless Cordless Rivet Guns 25mm Stroke

,

25mm Stroke Brushless Cordless Rivet Guns

,

Brushless Battery Rivet Guns 25mm Stroke


Cordless Riveting Tool Brushless Battery Rivet Gun Blind RIvets Setting Tool CE TDC7000

PRODUCT DESCIPTION



NEW DESIGN - POWERFUL - BRUSHLESS


Main Features:

  • Up to 6.4mm, suitable for high strength & structural blind rivets

  • Varied nose-pieces.

  • LED light. Lighting & Fault Indication

  • Transparent stem collector. visible; quick release stem; stem out in front or collected in back;

  • Powerful Li-ion battery..

  • Double side installable belt clip

  • Various front sleeves.

  • Advanced electrical circuit.

  • Accurate electricity level display.


Modular Design:
It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.



Specifications:


TDC7000 Cordless Riveting Tool


Main performance parameters Traction Power 17,000N max
Stroke 2mm
Cycle Time 2 sec.
Capacity Structural Rivets Aluminum 4.0mm-6.4mm
Structural Rivets Steel 4.0mm-6.4mm
Structural Rivets Stainless steel 4.0mm-6.4mm
Battery & Charger Battery 18V 2.0Ah 5cells Li-ion
Charger 100V-240V AC/50-60Hz
Charging Time 60min.



Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool 0


BATTERY FEATURES


  • The battery has a protective circuit.

  • About 1000 pieces Aluminum rivets or 800 pieces steel & stainless steel rivets with a single fully charged battery.

  • The effective capacity of the battery is still not less than 70% of the original capacity after 500 charging and discharging.

  • The battery can display the accurate electric level without be attached to the tool.



BENEFITS


Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;


FACTORY


Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.

Brushless Cordless Battery Rivet Gun 25mm Stroke Blind RIvets Setting Tool 1



FAQ



Q1. Is customized products accepted?

A1: Yes, customized products are accepted.



Q2. Are there samples available before orders?
A2: Yes, we can sell samples to you, price difference can be deducted at the production order.



Q3. Can I have my logo on your products?
A3: Yes, we are your OEM solution, we can easily customize your tools with your own logo.
